Product Detail
CXM-42M

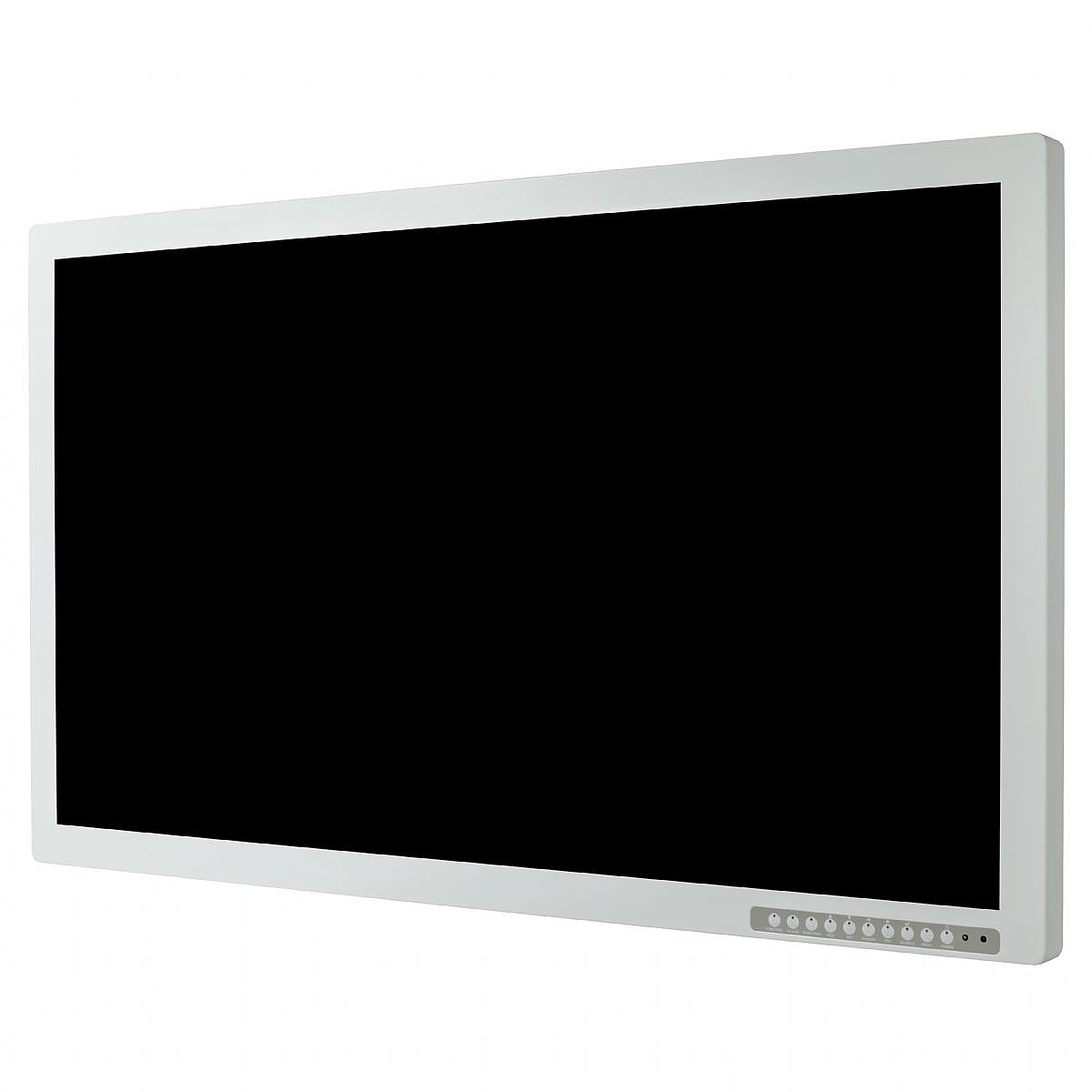

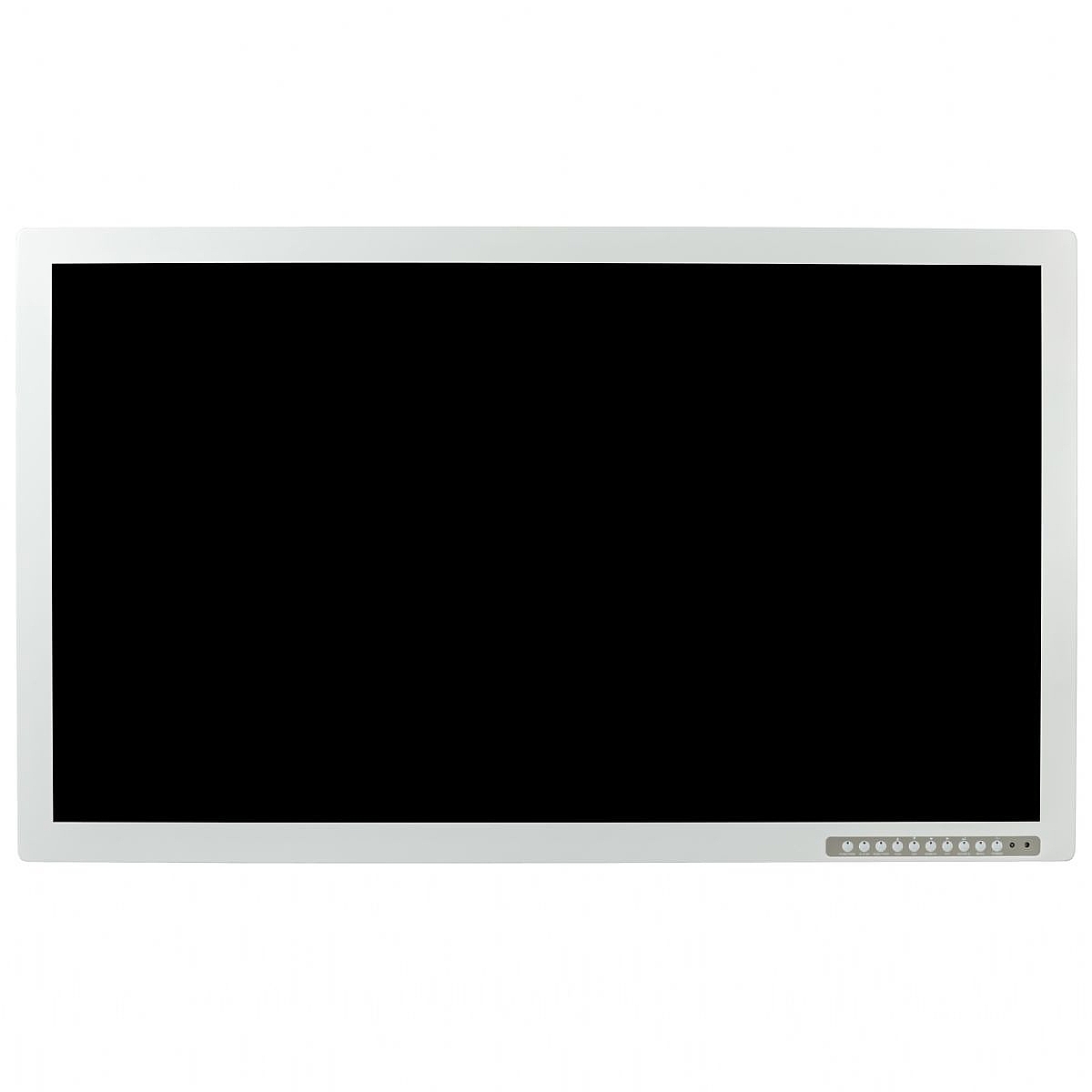

42" Medical display
.jpg)
- Item Number: 184235
- Product Category: Medical
42" Medical display
- Support Multi Display Mode: PIP/PAP
- AR protective filter
- Various video input: D-Sub, VGA, DVI, HDMI, SDI, Composite (PAL/NTSC) Component (RGBs/YPbPr) and S-Video (PAL/NTSC)
- cTUVus (ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No. 60601-1) CB (IEC 60601-1), TUV/RH(EN 60601-1), CE, FCC, VCCI, RoHS, WEEE
Full Description
| LCD | 42" LED |
| Brightness (cd/m2) | 700 |
| Contrast Ratio | 4000:1 |
| Resolution | 1920 x 1080 |
| Active Screen Area | 930.24 x 523.26 |
|
Viewing Angle |
176°(H) x 176°(V) |
| Touch Panel | N/A |
| I/O | 1 x DVI, 1 x VGA, 1 x HDMI, 1 x DP, 1 x RS232 |
| Front Frame | Metal |
| Dimension (WxHxD)(mm) | 1004 x 601 x 74.2 |
| Power | DC 24V |
| Operating Temperature | 10°~40°C |
