Product Detail
CXP-215PP

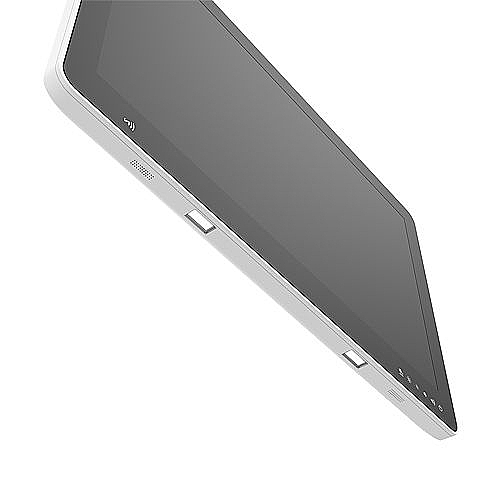

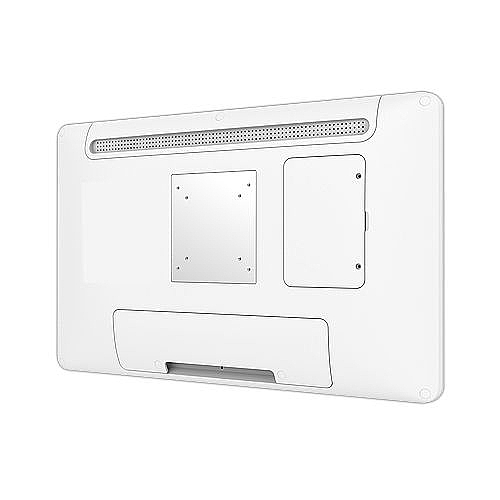

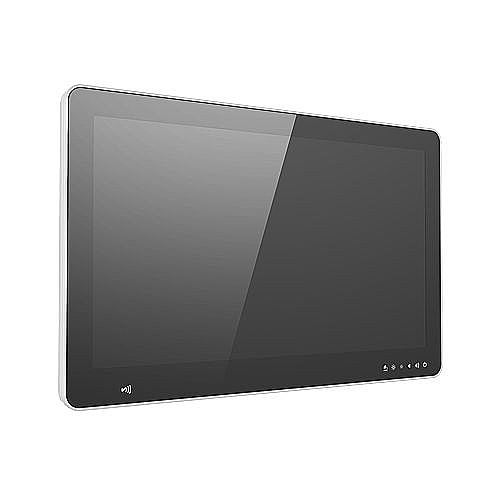

21.5" Ultra Slim Medical Fanless Panel PC
.jpg)
.jpg)
.jpg)
- Item Number: CXP-215PP
- Product Category: Medical
21.5" Ultra Slim Medical Fanless Panel PC
- 6th Gen. Intel Core i7/i5/i3
- Front Panel IP65 & Fanless Design
- 21.5" 16:9 1080P Display with PCAP Multi touch
- Anti-Microbial Finish
- Ultra-slim design only at 45.5 mm thickness
- Optional Isolation USB/COM/LAN ports by IET module
- Optional Handset with Barcode Scanner/MSR/SCR/NFC/RFID module
- Optional Wifi/BT v4.0 and Li-ion smart battery pack
- Medical certification UL60601-1
- CE/FCC class B
Full Description
| LCD | 21.5" LED 1920 x 1080 |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 3000:1 |
| CPU | Intel 6th Gen. Intel Core i7/i5/i3 |
| Memory | One 260-pin DDR4 SO-DIMM supports up to 16GB |
|
OS Support |
Windows, Linux |
| Touch Panel | Projected Capacitive Touch |
| I/O | 4 x USB 3.0, 2 x USB 2.0 (by pin header), 1 x Isolation USB 2.0 (Optional by IET module) |
| Dimension (WxHxD)(mm) | 539.6 x 342.6 x 45.5 |
| Power | DC 19V |
| Operating Temperature | 0°~40°C |
| Storage Temperature | -30°~70°C |
