Product Detail
CXP-19S-J1900IR

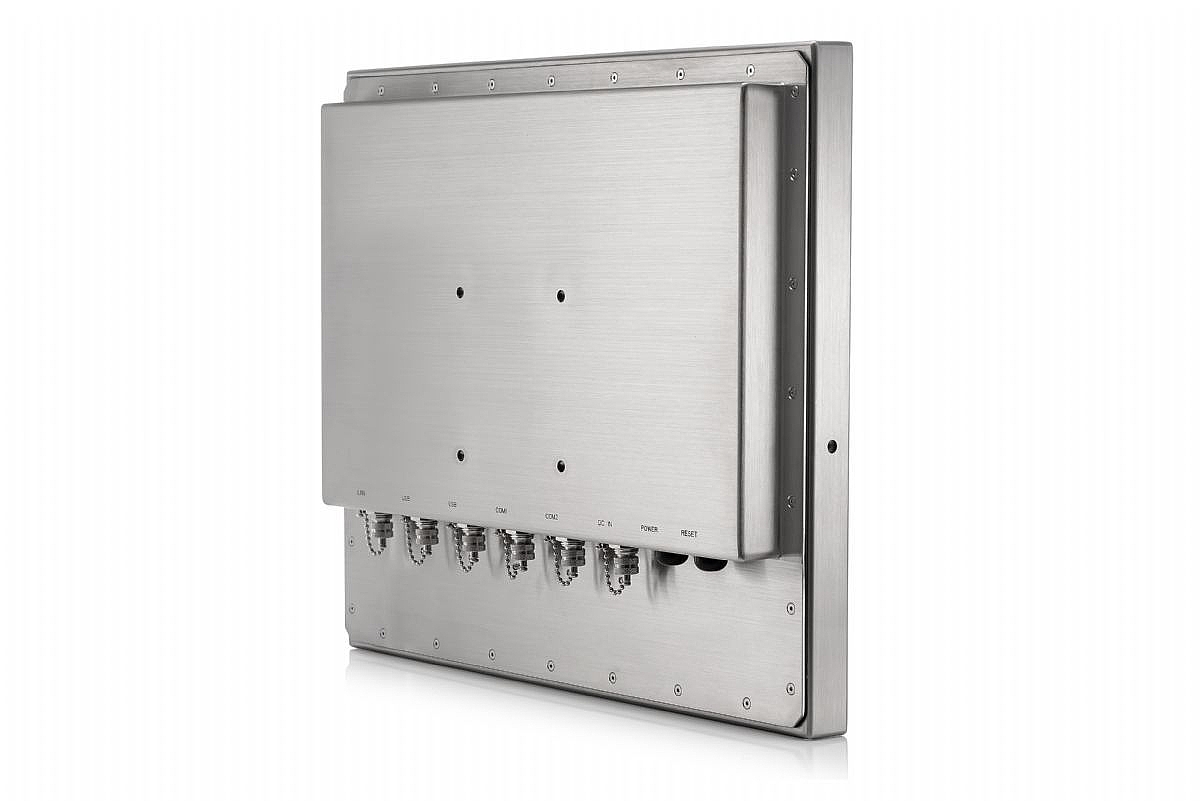

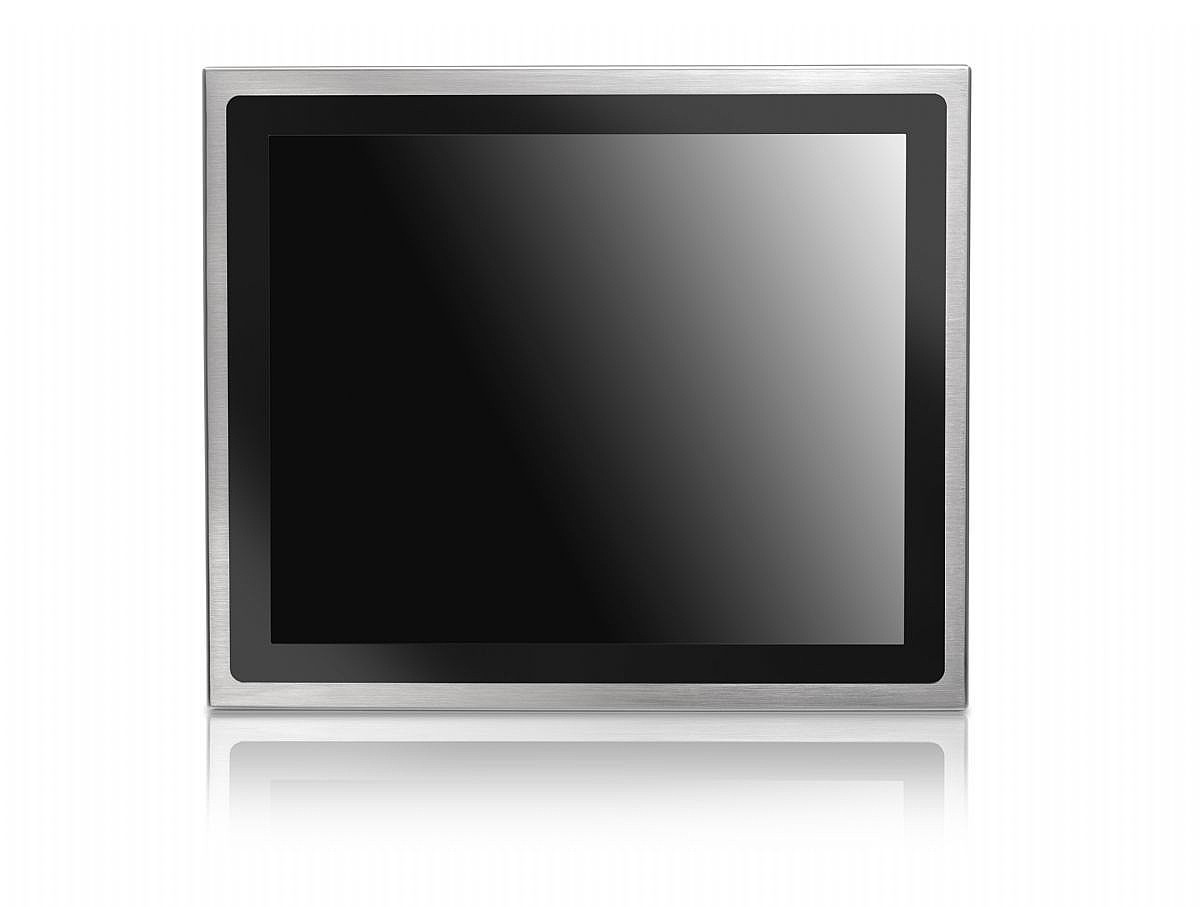

19" Intel Baytrail Fanless Stainless Panel PC
.jpg)
- Item Number: 183098
- Product Category: Stainless Steel
19" Intel Baytrail Fanless Stainless Panel PC
- Intel Quad-Core Celeron-J1900 CPU
- IP66 full sealed with Anti-corrosion enclosure
- 19" LCD with full flat Resistive touch
- i-Cooling thermal control system
- Special thermal design with anti-condensation
- IP67 M12 metal connectors
- IP67 power adapter and IP67 external I/O cables
- CE, FCC, VCCI Class B passed
- Opitonal Mini-PCIe WLAN with external antenna
- Optional Sunlight readable with optical bonding
Full Description
| LCD | 19" LED 1280 x 1024 |
| Brightness (cd/m2) | 350 |
| Contrast Ratio | 1000:1 |
| CPU | Intel Quad-Core J1900 2.0 GHz |
| Memory | Two 204-pin 1333/1600 MHz dual-channel DDR3 SO-Dimm supports up to 16 GB |
|
OS Support |
Windows |
| Touch Panel | 5 wire Full Flat Resistive Touch |
| I/O | 2 x USB M12, 1 x COM M12 (RS232/422/485), 1 x COM M12 (RS232), 1 x LAN M12 |
| Dimension (WxHxD)(mm) | 458 x 386 x 64 |
| Power | DC 12V |
| Operating Temperature | 0°~40°C |
| Storage Temperature | -20°~60°C |
